TialSport MVR 44mm Wastegate Assembly

Description

The TiAL MVR 44mm Wastegate is more compact than any current 44 or 46mm wastegate on the market. You get two top air ports and three bottom air ports for easy install of your wastegate to optimize boost control. The MVR wastegate is a direct bolt on for our legacy-model V44.

Technical Specifications:

– High temp alloy is used for valve and stainless steel valve housing will offer longer product life compared to competing designs.
– High temperature silicone reinforced actuator diaphragm.
– Stainless Steel actuator spring gives consistent pressure at high temperature.
– Stainless Steel is used for the valve seat, and valve bushing.
– All Stainless Steel hardware.
– Mating weld flanges are 304L.
– Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).

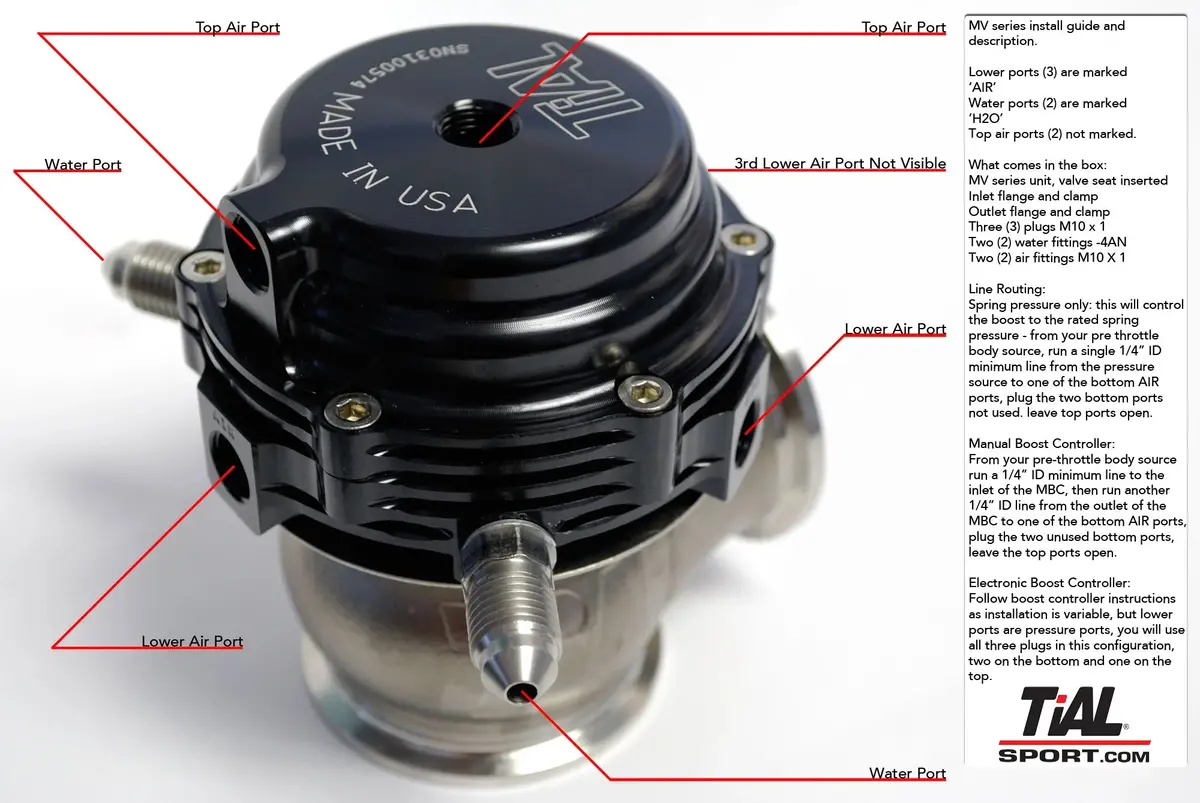

– 3 lower ports and 2 top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
– Ultra compact design fits in very tight spaces
– V-Band inlet and outlet make install easy, flanges and clamps are in the box!
– Integrated -4AN water cooling ports that cycle a small amount of coolant through the actuator top to keep the temperatures down in extreme conditions.
Included with every Tial MVR:

– MVR Wastegate Assembly

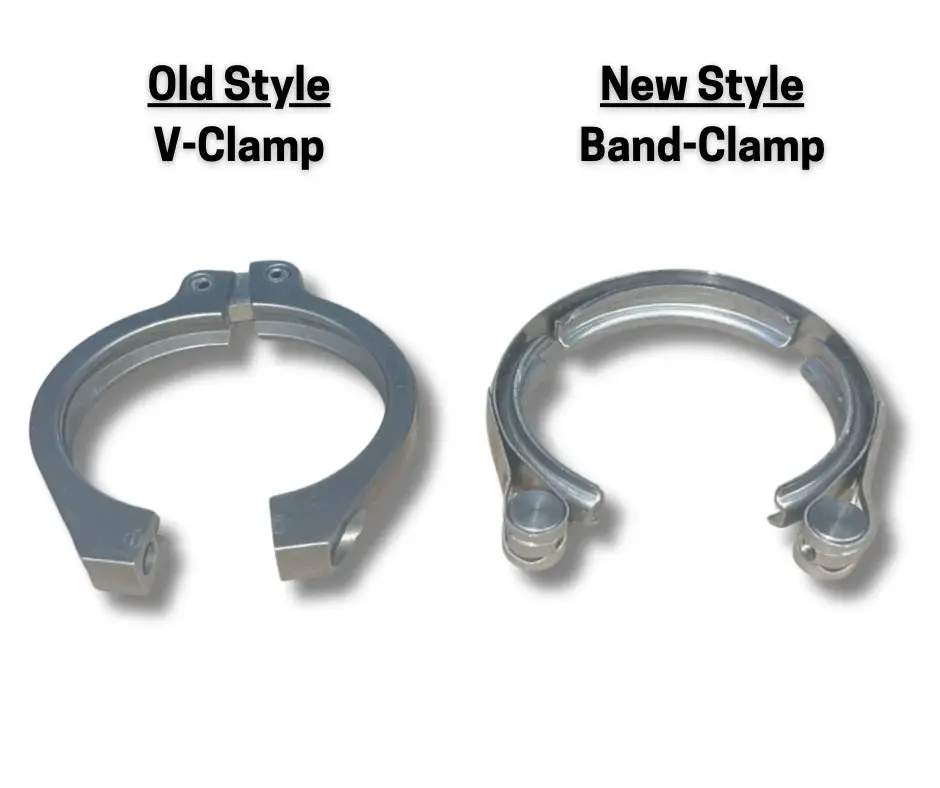

– Inlet V-band Clamp & Flange
– Outlet V-Band Clamp & Flange
– CNC machined air and coolant fittings
– Plugs for unused air ports

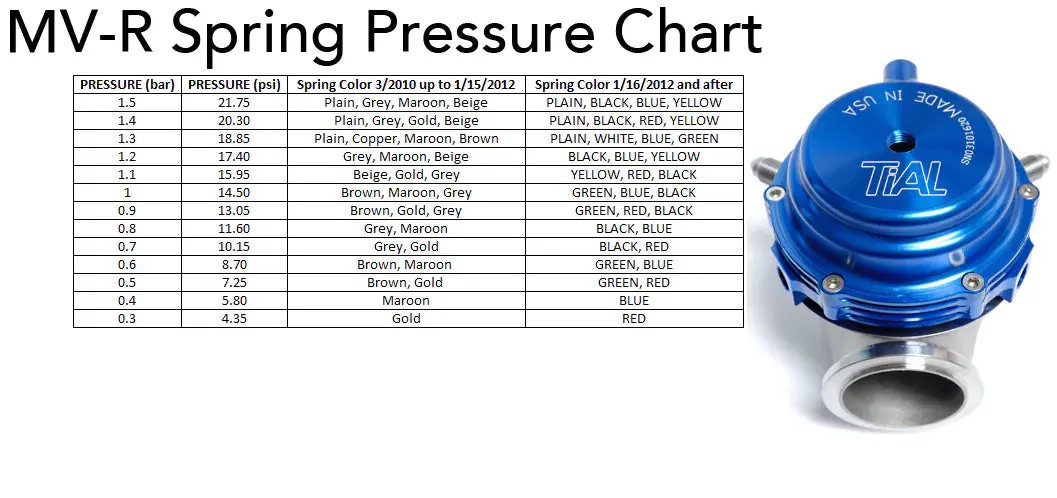

– Wastegate springs (choose in drop down)

Note: The optional Position Sensor kit is Black only
