Sale!
Precision Turbo Gen2 Pt6266 Cea 1

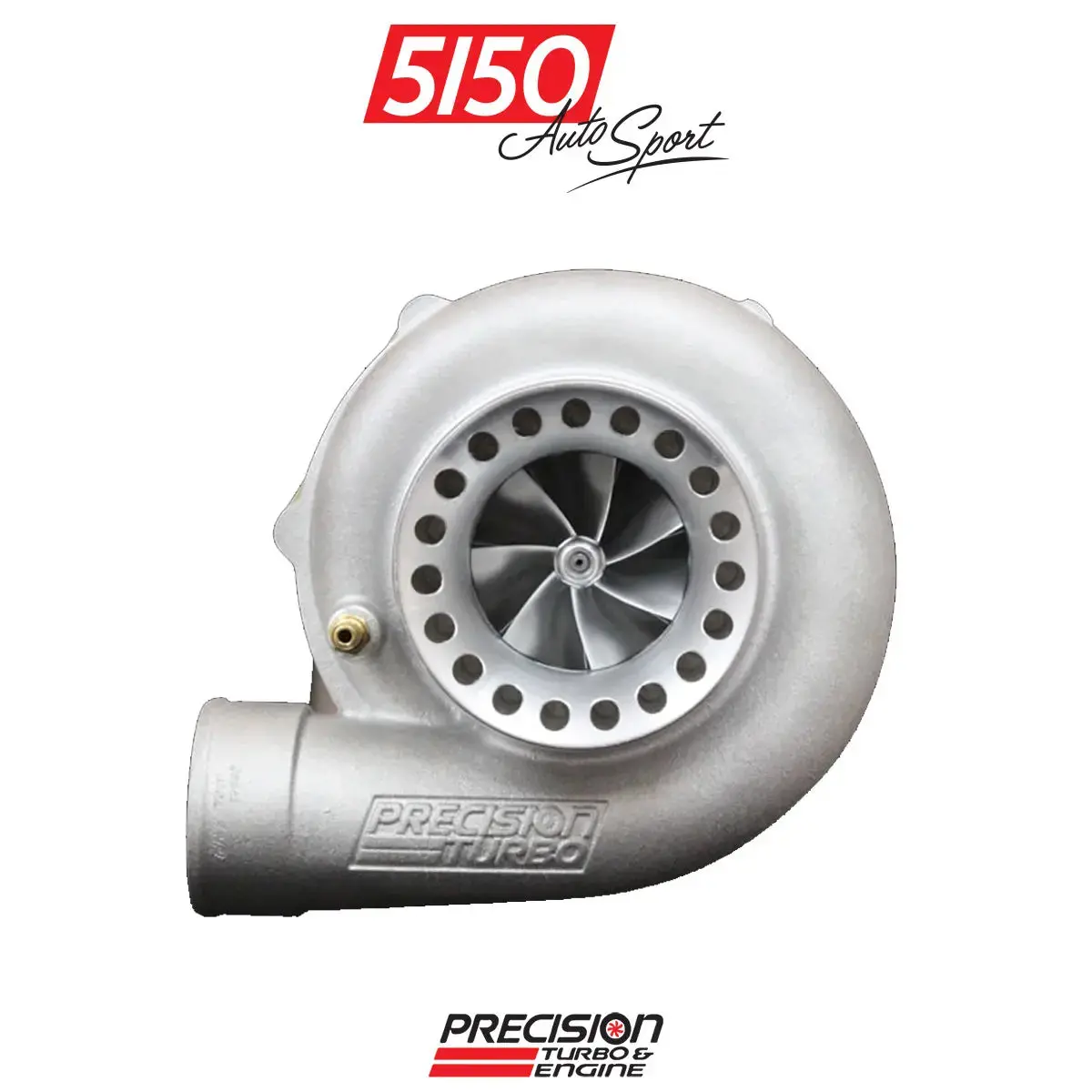

Precision Turbo GEN2 PT6266 CEA Ball-Bearing Turbo

Price range: $92.13 through $92.88

Quantity
SKU: N/A Category: Brand:

Description

HP Rating: 800

Featuring the latest and greatest in compressor and turbine wheel technology from Precision, the PT6266 GEN2 CEA® offers a unique combination of Competition Engineered Aerodynamics (CEA®) with both hot and cold sides! Offering substantially more horsepower over similarly sized turbos, the PT6266 GEN2 CEA® is the perfect choice for those wanting to make more power without changing their current system.

Ball Bearing ONLY

PTE’s PT6266 Turbocharger Features:

  • Exclusive GEN2 CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
  • Higher efficiency and faster transient response for maximum power and performance
  • 62mm inducer compressor wheel
  • “Ported S” compressor cover 4.0″ inlet/2.5″ outlet
  • Exclusive CEA® (Competition Engineered Aerodynamics) 66mm, 76 trim turbine wheel
  • Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)

Turbine housing options:

  • Cast 310 stainless steel THV5S / 1.05 A/R
  • T3 .63 or .82 A/R with 4 bolt (2.5″) discharge
  • T3 .63 A/R with 5 bolt discharge (with or without wastegate hole)
  • T3 .63 or .82 A/R with 3″ OD (outer diameter) V-Band discharge
  • V-Band inlet .82 A/R with V-Band discharge
  • Stainless steel .82 A/R V-band inlet/outlet
  • T4 Tangential .58, .68, .81, or .96 A/R with 3 5/8″ OD (outer diameter) V-Band discharge
  • T4 Divided .84, 1.0, 1.15, or 1.32 A/R with 3 5/8″ OD (outer diameter) V-Band discharge

Explore more from our collection.

Additional information

Turbine Housing

BB SP Cover T3 Inlet 4-BOLT Discharge .63 A/R, BB SP Cover T3 Inlet V-Band Discharge .63 A/R, BB SP Cover T3 Inlet 4-BOLT Discharge .82 A/R, BB SP Cover T3 Inlet V-Band Discharge .82 A/R, BB SP Cover V-Band In/Out .82 A/R, BB SP Cover T4 Inlet V-Band Discharge .68 A/R, BB SP Cover T4 Inlet V-Band Discharge .81 A/R, BB SP Cover T4 Inlet V-Band Discharge .96 A/R, BB SP Cover T4 Divided Inlet V-Band Discharge .70 A/R, BB SP Cover T4 Divided Inlet V-Band Discharge .84 A/R, BB SP Cover T4 Divided Inlet V-Band Discharge 1.00 A/R, BB SP Cover T4 Divided Inlet V-Band Discharge 1.15 A/R, BB SP Cover T4 Divided Inlet V-Band Discharge 1.32 A/R
