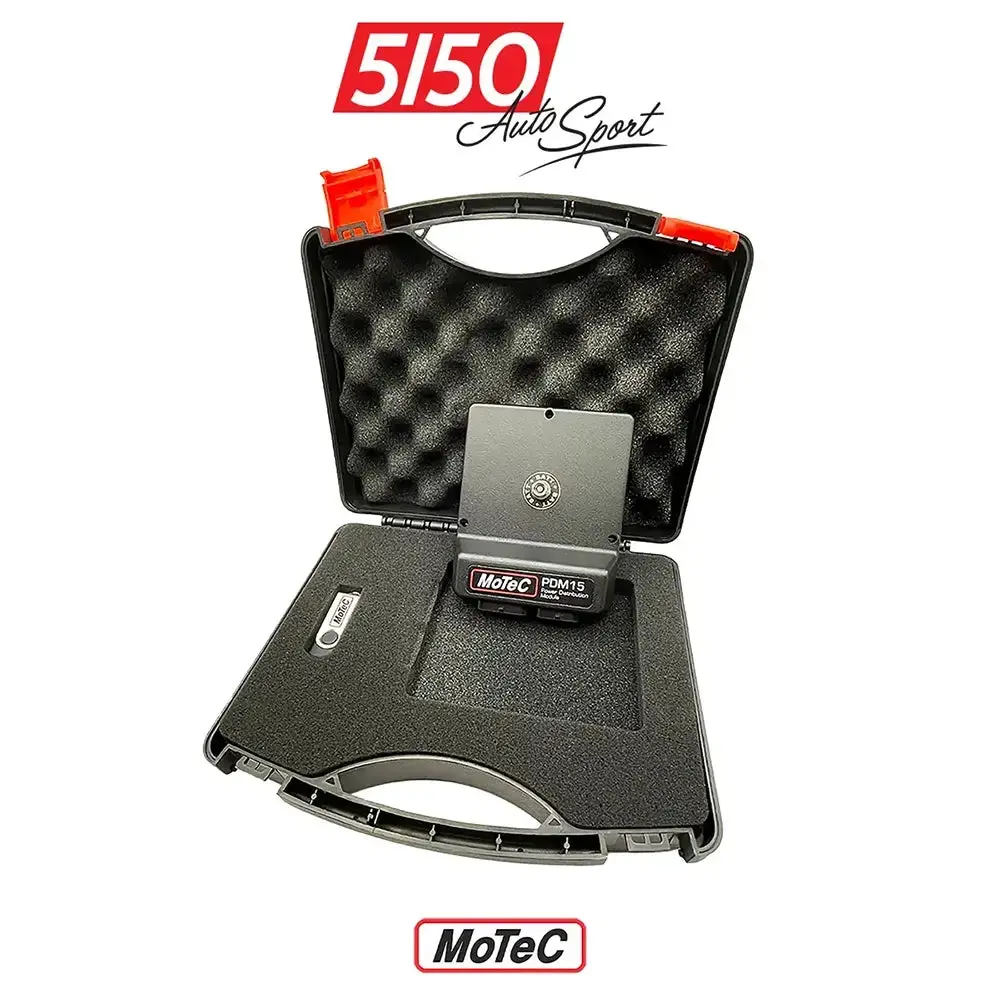

MoTeC PDM15 Power Distribution Module Kit

Description

MoTeC’s new 15 output Power Distribution Module (PDM15) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.

The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight, while increasing reliability.

 Outputs:

• 8 x 20 A outputs—20 A continuous, 115 A transient (typical)
• 7 x 8 A outputs—8 A continuous, 60 A transient (typical)

Inputs:

• 16 x Switch inputs

Communications:

• 1 x CAN

Diagnostic Information:

• Output current and voltages
• Input voltages
• Error status

Connectors:

• 1 x 34 pin waterproof connector
• 1 x 26 pin waterproof connector
• 1 x M6 stud

Case size:

• 108 x 128 x 39 mm

Weight:

• 260 grams
  Kit Includes:
• MoTeC 15 Position CAN Keypad
• Flush Mount Bezel for CAN Keypad
• 3x Sheets Keypad Labels
• Can connector w/lock – Used with MoTec UTC connector
• MoTeC UTC – USB to CAN adapter
• USB A cable
• MoTeC 10′ Unterminated Flying Lead Harness for PDM15/PDM30 made with Tefzel Wire.
• USB with Software
