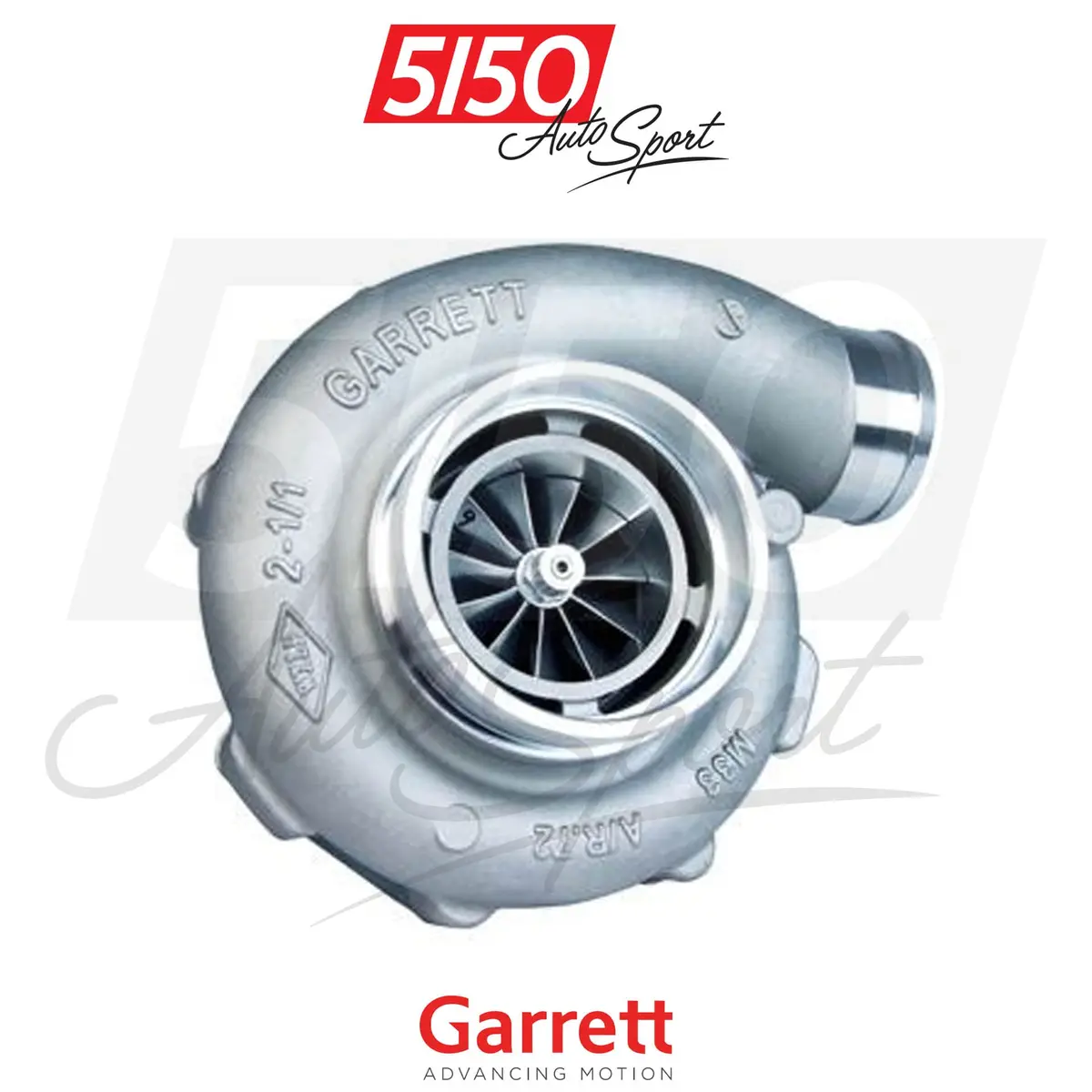

Garrett G-Series G30-900 Turbocharger

Description

G-Series G30-900 62mm Turbocharger
Horsepower: 550-900 HP | Displacement: 2.0L – 3.5L

Features:

• Advanced Compressor Aero – 62mm forged fully-machined wheel with up to 77% efficiency

• High-Flow Turbine Wheel – MAR-M alloy rated up to 1050°C

• New Turbine Aero – Increased flow and efficiency

• Durable Stainless Steel Housings – Rated up to 1050°C

• Speed Sensor & Pressure Ports – Fully machined for accurate monitoring

• Oil Restrictor & Water Fittings – Included for optimal lubrication and cooling

• Actuator Pre-Calibrated – 0.5 bar actuator included

• Supercore Options: Standard (PN: 880693-5003S) & Reverse Rotation (PN: 880694-5003S)

Turbocharger Performance:

• Max Speed: 145krpm (Overspeed may cause damage; speed sensor recommended)

• Performance depends on modifications and tuning

Important Product Information:

For racing use only. Not legal for public roads. Installation is at user’s risk and may void warranties. Verify compliance with local regulations.

Reference Data:

Spec	Compressor	Turbine
Inducer	62mm	60mm
Exducer	76mm	55mm
Trim	65	84
A/R	0.72	N/A

Turbo Kits:

Rotation	PN	A/R	Inlet	Outlet	Wastegate	Divided
Standard	880704-5008S	0.83	V-Band	V-Band	Internal	N
Reverse	880694-5003S	N/A	N/A	N/A	N/A	N/A

Turbine Kits (Interchangeable with G30-660 & G30-770 Supercores):

Rotation	PN	A/R	Inlet	Outlet	Wastegate	Divided
Standard	740902-0092	1.06	T4	V-Band	Free Float	Y
Reverse	740902-0100	0.83	T3	V-Band	Free Float	N

Additional Features:

• Speed Sensor Compatibility – New easy-install design (sold separately)

• Enhanced Cooling – Four large water ports for customizable routing

• Efficient Oil Passage – Directs pressurized oil for optimal lubrication

• Twin Piston Rings – Reduces oil leakage risks

• Upgraded Turbine Aero – 15-20% higher flow than GTX series

• Compact Wastegated Housings – Reduces boost creep for better control

Downloadable Resources:

• Compressor Map & Exhaust Flow Chart – Download

• Product Photo & Flange Diagram – Download

• Speed Sensor Installation Guide – Download

For maximum power in a compact design, the Garrett G-Series G30-900 sets the benchmark in mid-frame turbocharger performance.
