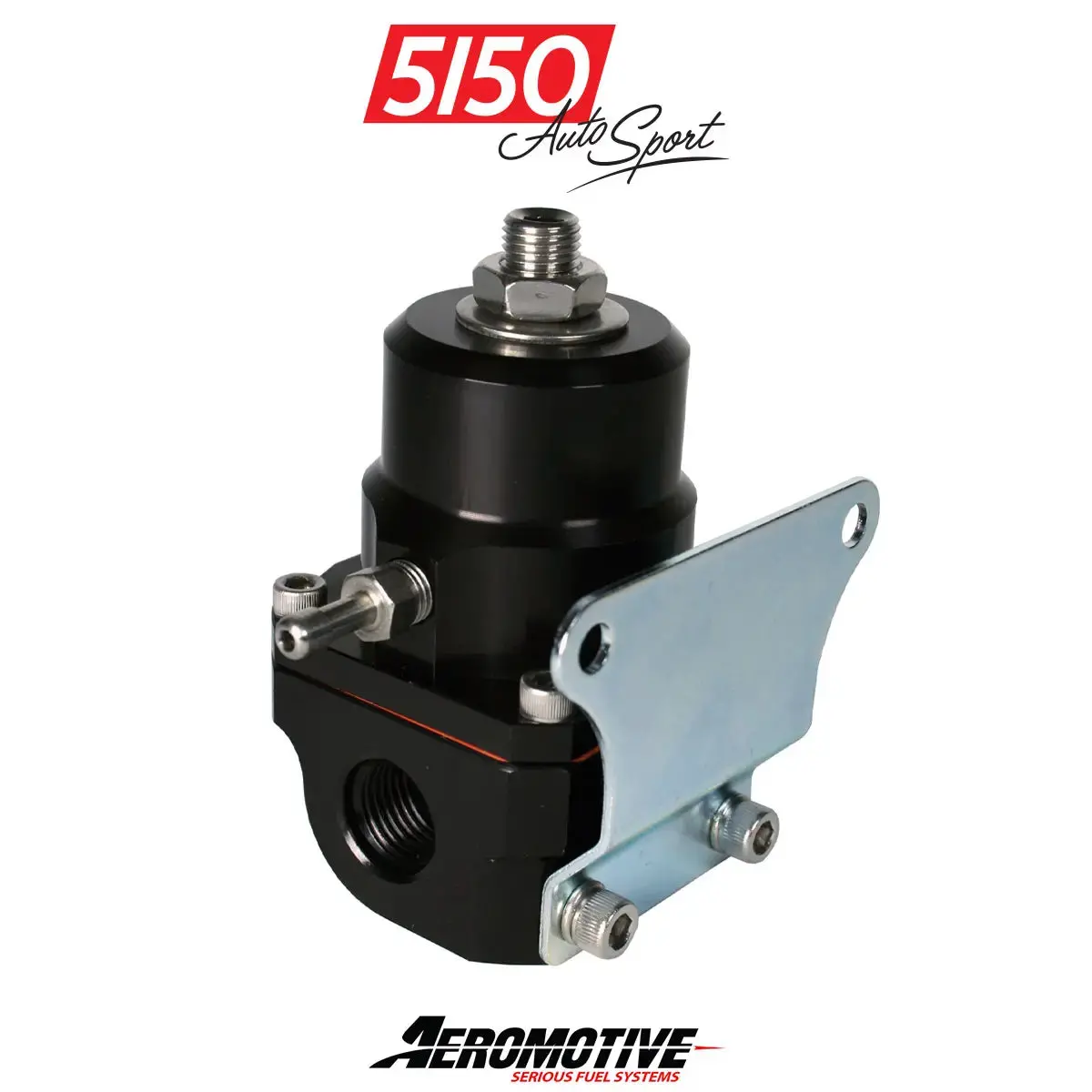

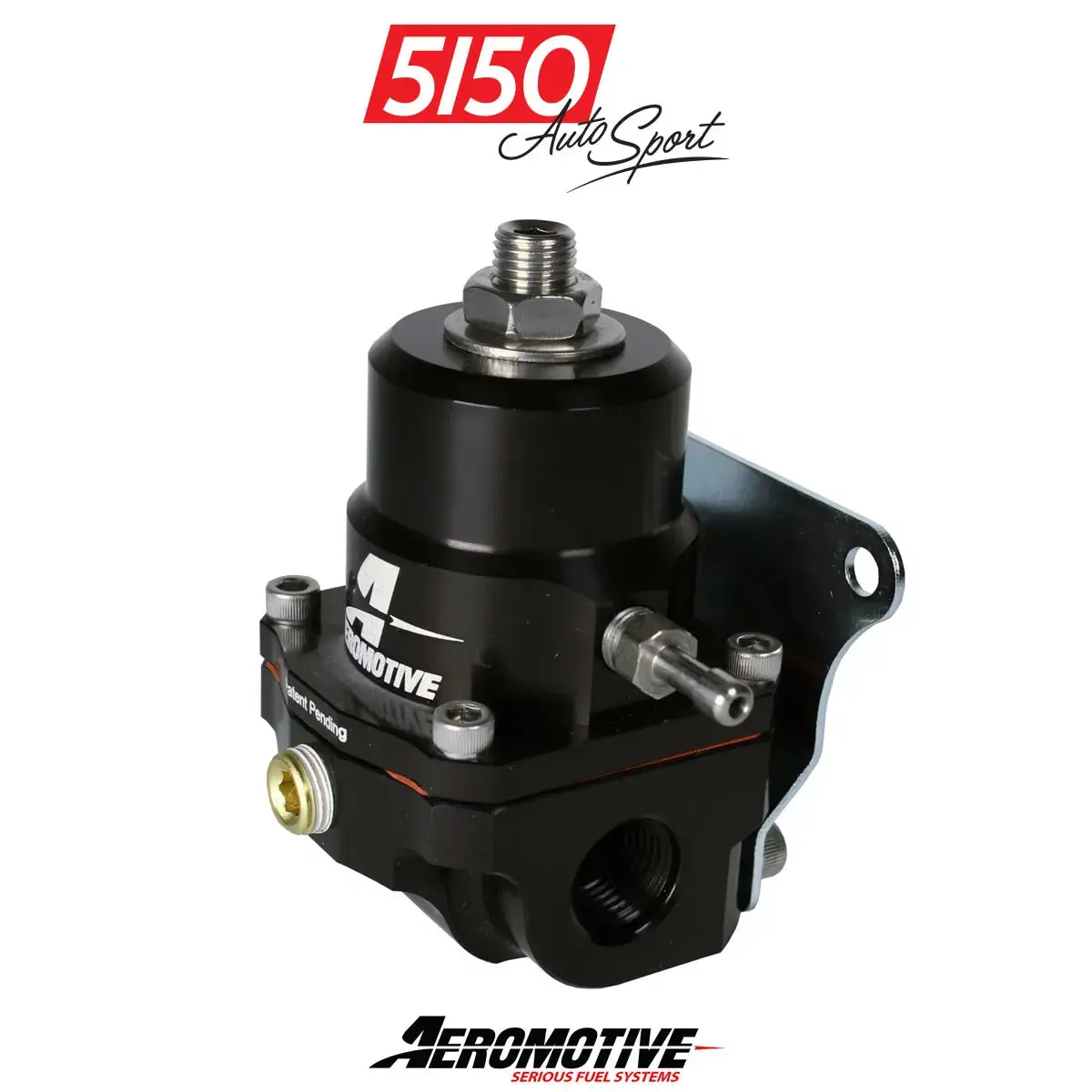

Aeromotive A1000 Gen II EFI Fuel Pressure Regulator

Description

40-70 PSI EFI Regulator with ORB ports

The Aeromotive A1000 Gen-II EFI Regulator is a high Performance, adjustable EFI regulator designed for medium to high horsepower applications. This regulator features Aeromotive’s high-flow design, superb pressure control and legendary durability. Please note: this product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

• Engineered for A1000 class and smaller pumps.

• Gas, ethanol, methanol and diesel compatible.

• 40-75 PSI adjustable base pressure range.

• 1:1 vacuum/boost reference capability.

• 1/8″ NPT dedicated gauge port.

• All Configurations include (1) ORB-06 return port.

• Patent No. D763,409

Recommended Fittings for inlet/outlet ports:

• ORB-08 to AN-06 for AN-06 fuel line.

• ORB-08 to AN-08 for AN-08 fuel line.

• ORB-08 to AN-10 for AN-10 fuel line.

Recommended fittings for return port:

• ORB-06 to AN-06 for AN-06 fuel line.

• ORB-06 to AN-08 for AN-08 fuel line.
