5150 Autosport BMW S14 Cylinder Head Gasket and Stud Package

Description

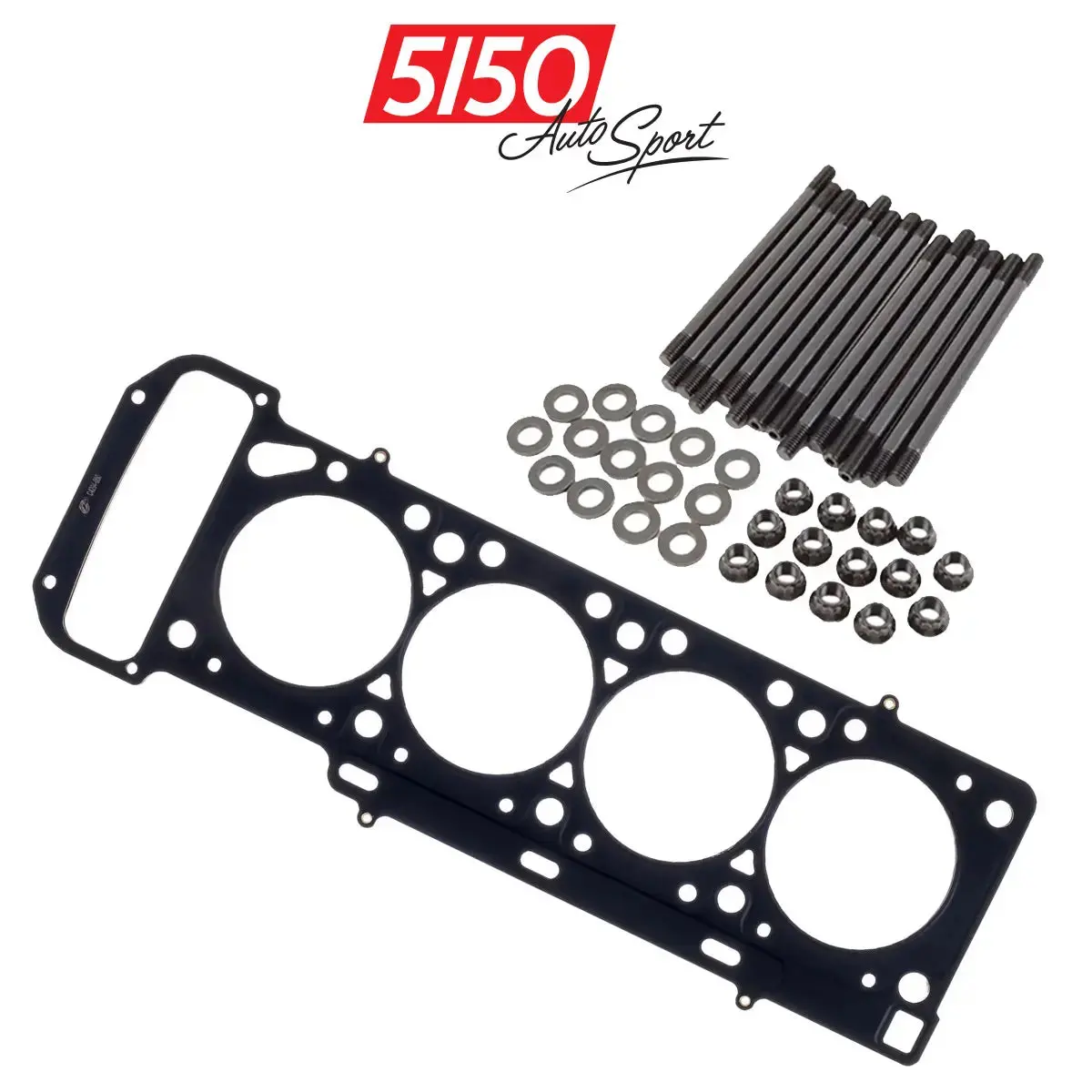

5150 AutoSport Head Gasket & Head Stud Kit for BMW S14

This kit is designed for BMW S14B20, S14B23, S14B25, and S14B27 engines found in the E30 M3. It includes a high-performance head gasket and an ARP head stud kit to ensure superior sealing and reliability under extreme conditions.

MLS Head Gasket

A direct replacement for BMW part #11121316714, this Cometic MLS (Multi-Layer Steel) head gasket is ideal for both OEM rebuilds and performance applications, including turbocharged engines.

• Maximum sealing without additional sealants
• Resistance to shearing forces and bore distortion
• Superior durability with corrosion-resistant stainless steel layers

Note: MLS gaskets require smooth, flat surfaces and are not compatible with O-ringed blocks.

Don’t see the MLS head gasket you’re looking for? More bore and thickness options are available here.

Athena Cut-Ring Head Gasket

Recommended for engines exceeding 16+ psi of boost, this gasket features AISI 304 stainless steel rings that bite into the aluminum head for unmatched sealing, even in nitrous or high-boost applications above 2 bar. Constructed from premium asbestos-free M0115 material, it ensures:

• Maximum sealing for high-compression and forced induction setups
• Reduced risk of power loss, misfires, and overheating
• Compatibility with piston sizes 0.5mm–1mm larger than the gasket bore

Installation Note: Ensure all mating surfaces are clean and resurfaced before installation.

ARP Head Stud Kit

The ARP #201-4605 head stud kit enhances engine durability and head gasket reliability by providing superior clamping force. Ideal for high-performance and racing builds, this kit helps prevent head lift under extreme conditions.

Installation Tips:

• Clean and prepare all threads before installation
• Hand-tighten studs into the block
• Use ARP Ultra-Torque Lubricant for consistent clamping force
• Follow proper torque sequence and re-torque after initial engine heat cycle

Installation Instructions:
1. To ensure proper thread engagement and accurate torque readings, clean ALL threads in the block. Chase if necessary with ARP Thread Chaser.2. Clean and inspect all hardware prior to installation. Look for obvious defects or shipping damages, plus proper fit, length and dimension.3. If the cylinder head studs protrude into a water jacket, lubricate the block threads of the studs with ARP THREAD SEALER.4. Screw studs into the block “HAND TIGHT ONLY”.5. Install the cylinder head(s) and check for binding or misalignment.6. Lubricate the stud threads, nuts and washers with ARP ULTRA-TORQUE FASTENER ASSEMBLY LUBRICANT.Then install the washers and the nuts onto the studs and tighten them hand tight.ARP recommends using the ARP ULTRA-TORQUE FASTENER ASSEMBLY LUBRICANT that is provided with each kit as opposed to motor oil. This is due to higher friction on the studs as well as inconsistencies in the clamping force of the fasteners when motor oil or other low quality lubricants are used.
PRELOAD (TORQUE) RECOMMENDATIONS
7. Following the manufacturers recommended torque sequence tighten the nuts steps 1-3

Step 1: Tighten to 30 ft-lbs. Step 2: Tighten to 60 ft-lbs.Step 3: Tighten to 95 ft-lbs.
with ARP Ultra-Torque fastener assembly lubricant
Bolt Torque Sequence

7	3	1	5	9
10	6	2	4	8

BMW S14 Applications:

BMW S14B20

1989-1991      E30     320is [Portugal and Italy]

BMW S14B23

1986-1991      E30     M3
1986-1987      E30     M3 Evo I
1988      E30     M3 Evo II

BMW S14B25

1990      E30     M3 Sport Evo (Evo III)
