Description
This is one brand new factory wiring diagram from Ford. The Ford service part number for this item is PG-320. It is correct for the applications listed in the compatibility chart. This is a brand new unused manual. Due to the age of the manual there is some yellowing of the pages. Some manuals have scuffs scratches or small tears in cover from handling while in storage. These manuals are not packaged for individual retail sale.

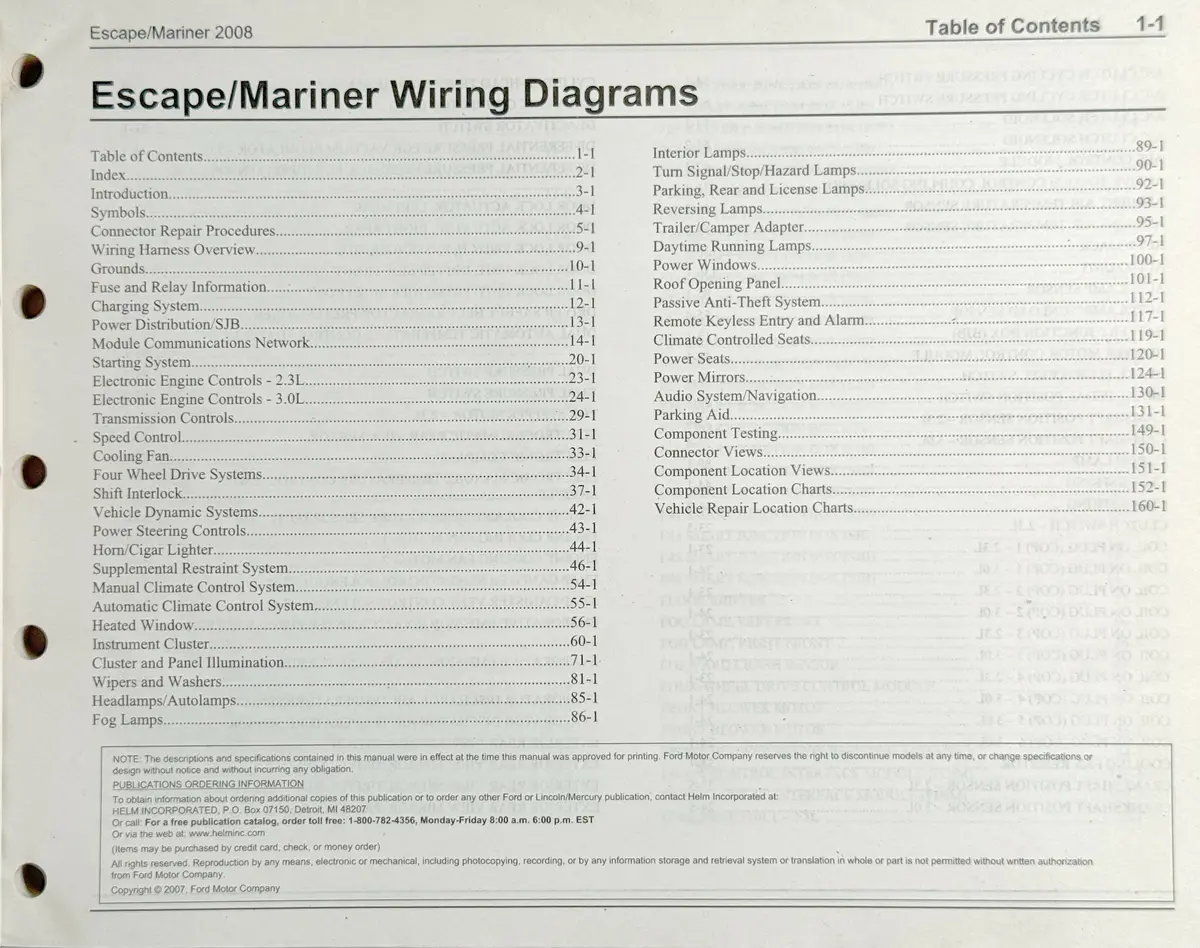

This manual covers all aspects of wiring for a 2008 Ford Escape / Mercury Mariner (except hybrid models). It Includes:
Full wiring diagrams
Component Testing
Connector Pinouts and much more
Vehicle Compatibility
This part is correct for the following applications:
|
Year |
Make |
Model |
|
2008 |
Ford |
Escape (except hybrid) |
|
2008 |
Mercury |
Mariner (except hybrid) |
Specifications
|
Publisher |
Ford Motor Company |
|
Condition |
New; some yellowing of pages due to age is possible, small tears in cover possible from handling |
